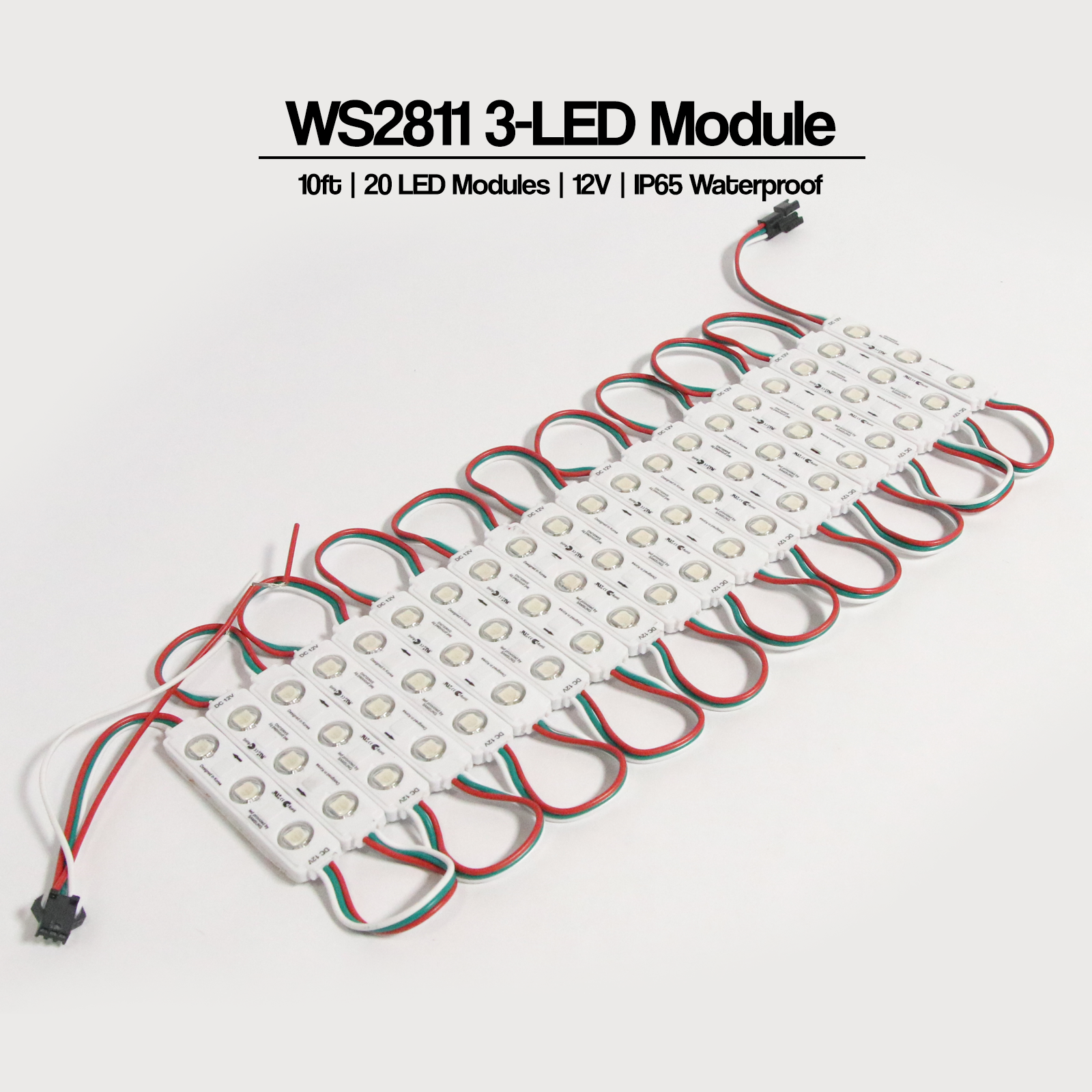

12V WS2811 3-LED RGB pixel module string with waterproof IP67 addressable LED modules
WS2811 RGB LED modules installed as colorful accent lighting under a bar counter
20 pack of 12V WS2811 addressable RGB LED pixel modules on a white background

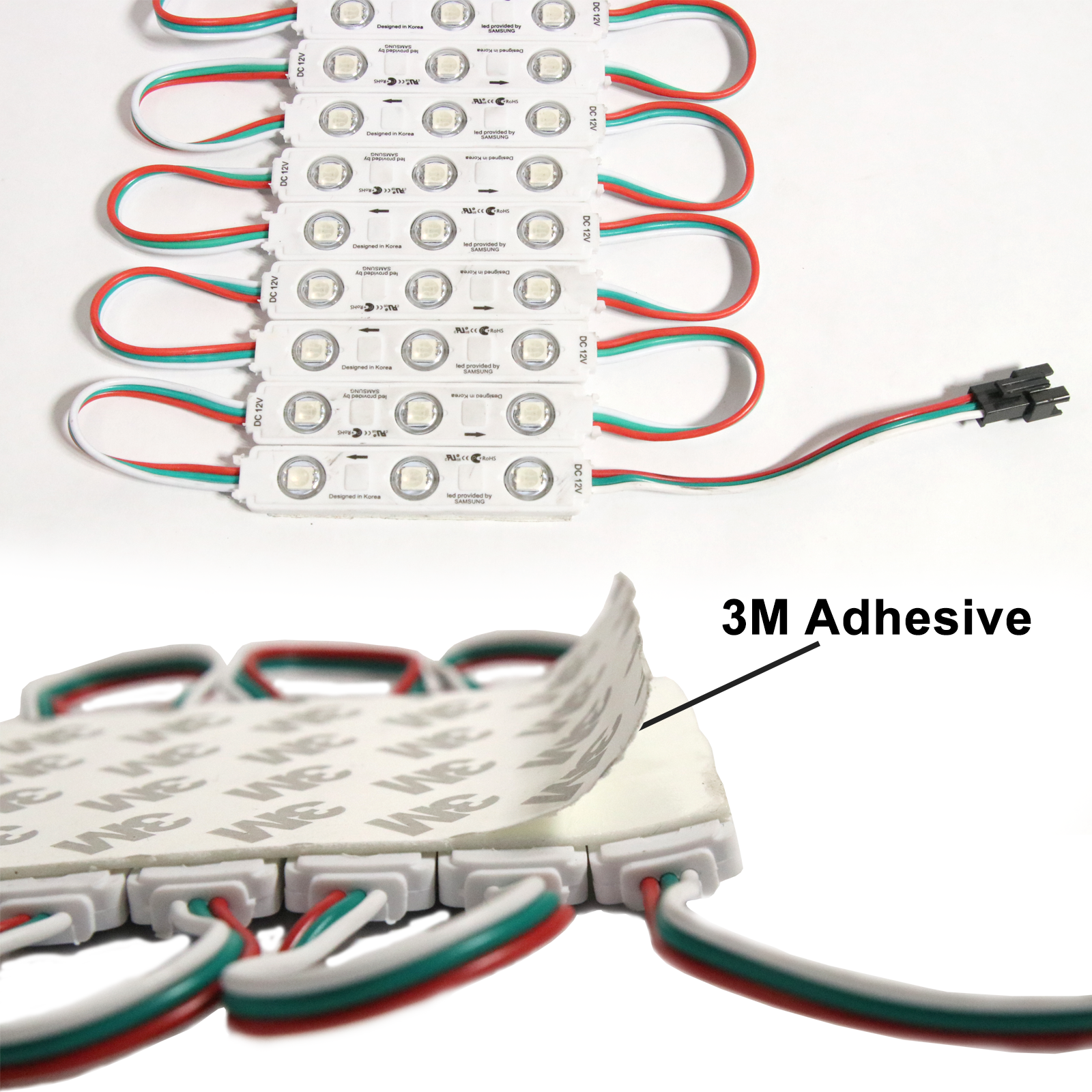

Close up of WS2811 RGB pixel module with 3M adhesive backing and red white green wiring

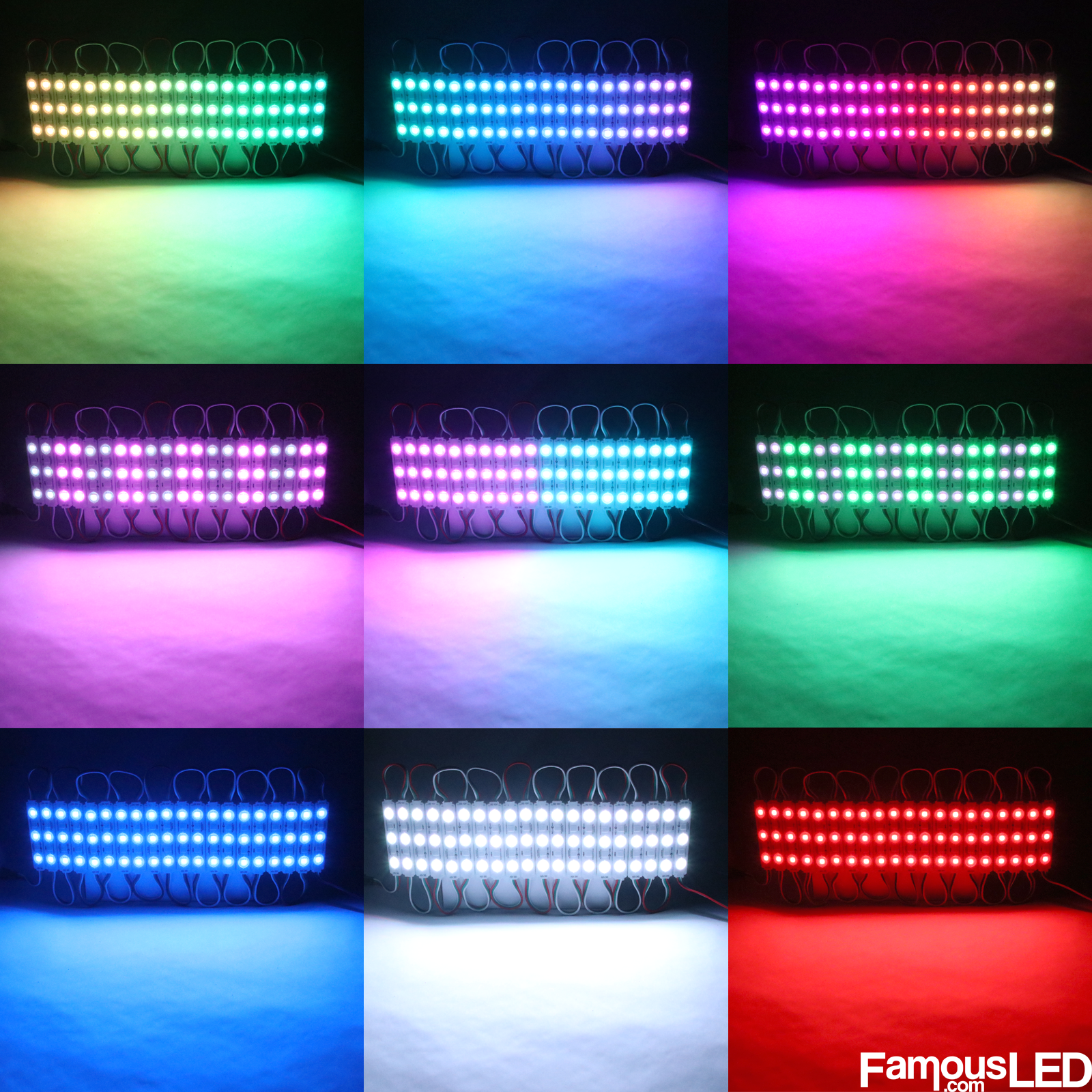

WS2811 RGB LED modules displaying multiple colors including blue green purple white and red

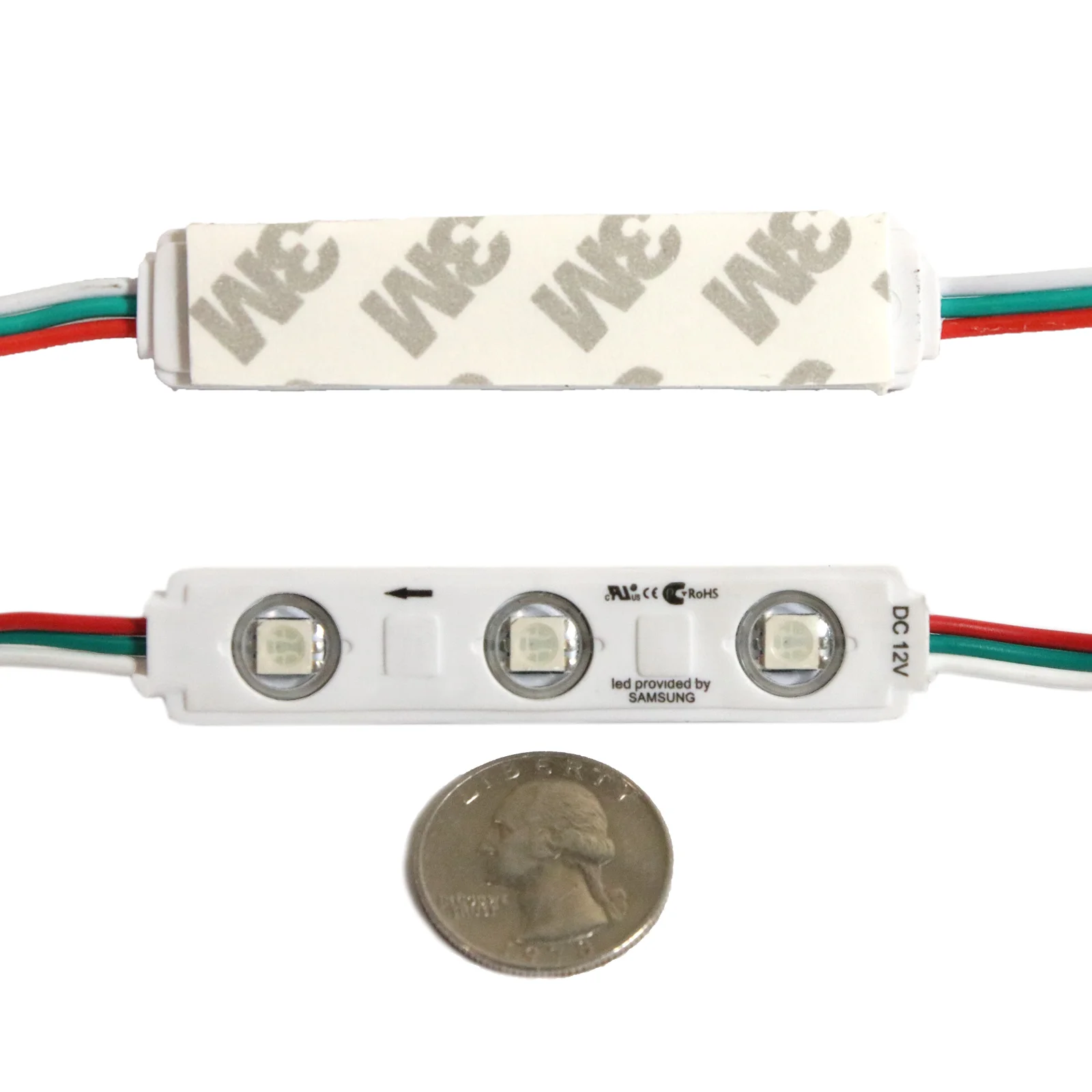

Close up of a 12V WS2811 3-LED RGB pixel module shown next to a coin for size comparison

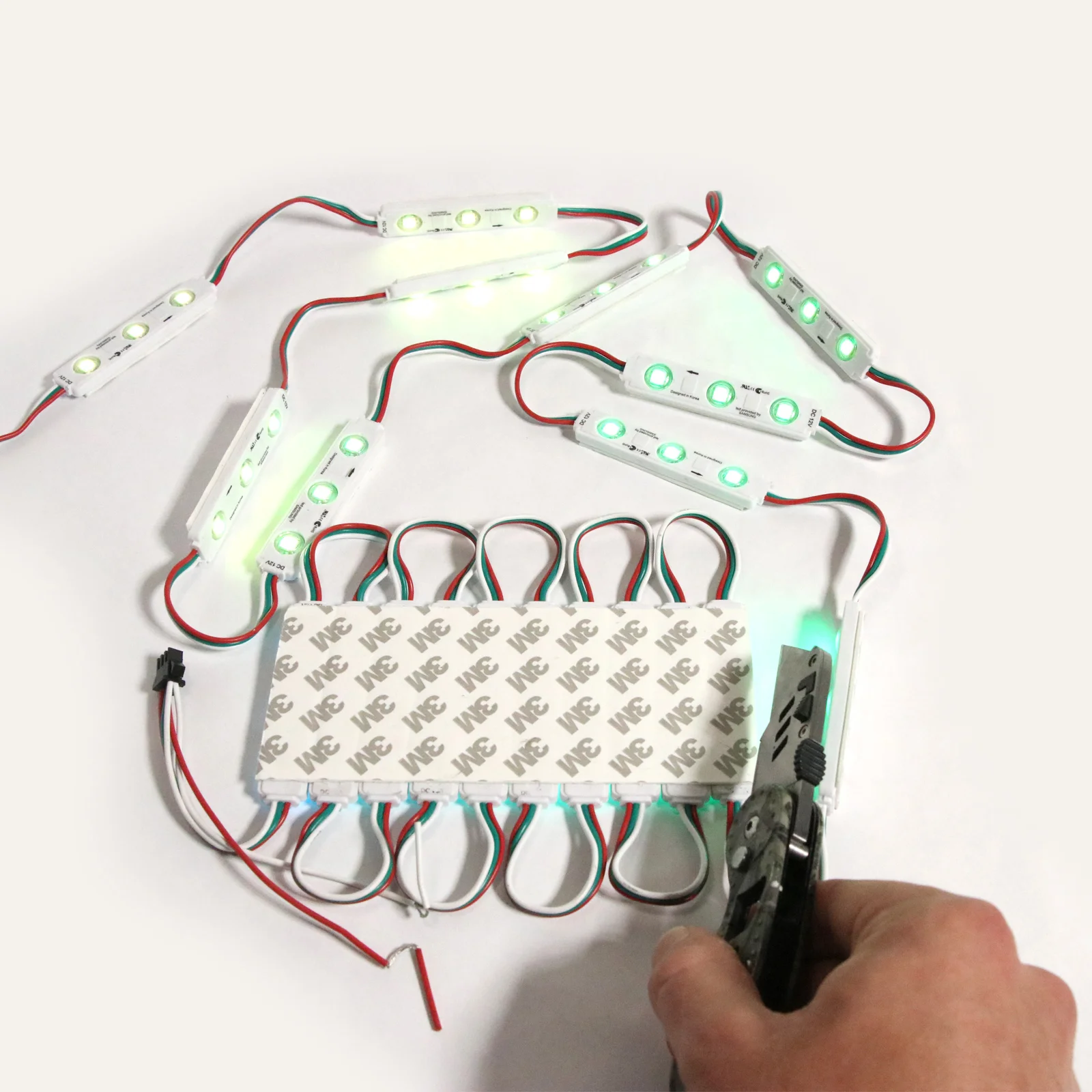

WS2811 RGB pixel modules connected to a controller for testing addressable color lighting
12V WS2811 3-LED RGB pixel module string with waterproof IP67 addressable LED modules
WS2811 RGB LED modules installed as colorful accent lighting under a bar counter
20 pack of 12V WS2811 addressable RGB LED pixel modules on a white background
Close up of WS2811 RGB pixel module with 3M adhesive backing and red white green wiring
WS2811 RGB LED modules displaying multiple colors including blue green purple white and red
Close up of a 12V WS2811 3-LED RGB pixel module shown next to a coin for size comparison
WS2811 RGB pixel modules connected to a controller for testing addressable color lighting

12V WS2811 3-LED RGB Pixel Modules – 20 Pack Waterproof IP67 Addressable LED String

$29.95

Description

These 12V WS2811 3-LED RGB pixel modules are designed for custom addressable lighting projects that need bright color, flexible installation, and weather-resistant performance. Each 20-pack string includes waterproof IP67 RGB LED modules with 5050 SMD LEDs, 3M adhesive backing, and red/white/green wiring for 12V power, ground, and data.

Ideal for signs, cabinet lighting, bar lighting, deck lighting, patio lighting, automotive accent lighting, holiday displays, and custom DIY RGB lighting projects. Compatible with common WS2811 and WS2812B-style LED controllers.

Technical Specifications

- LED Type: 5050 SMD RGB LEDs
- IC Type: WS2811
- Operating Voltage: 12V DC
- Power Consumption: 14.4W per 20-module string / 0.72W per module
- Color Output: RGB full color, up to 16 million color combinations
- Beam Angle: 120°
- Waterproof Rating: IP67
- Module Dimensions: 75mm x 15mm x 5mm per module
- Total String Length: Approximately 10.5 ft
- Working Temperature: -20°C to +45°C
- Lifespan: 50,000+ hours
- Mounting: 3M VHB foam adhesive backing
- Wire Color Code: Red = 12V+, White = Ground / GND, Green = Data

Compatibility

Compatible Controllers: WS2811, WS2812B, and WS2812B-style LED controllers
Power Supply Required: 12V DC power supply
Controller Required: Yes

What’s Included

1 x 20-piece WS2811 3-LED RGB pixel module string

Please Note

Controller and power supply are sold separately.

Description

These 12V WS2811 3-LED RGB pixel modules are designed for custom addressable lighting projects that need bright color, flexible installation, and weather-resistant performance. Each 20-pack string includes waterproof IP67 RGB LED modules with 5050 SMD LEDs, 3M adhesive backing, and red/white/green wiring for 12V power, ground, and data.

Ideal for signs, cabinet lighting, bar lighting, deck lighting, patio lighting, automotive accent lighting, holiday displays, and custom DIY RGB lighting projects. Compatible with common WS2811 and WS2812B-style LED controllers.

Technical Specifications

- LED Type: 5050 SMD RGB LEDs
- IC Type: WS2811
- Operating Voltage: 12V DC
- Power Consumption: 14.4W per 20-module string / 0.72W per module
- Color Output: RGB full color, up to 16 million color combinations
- Beam Angle: 120°
- Waterproof Rating: IP67
- Module Dimensions: 75mm x 15mm x 5mm per module
- Total String Length: Approximately 10.5 ft
- Working Temperature: -20°C to +45°C
- Lifespan: 50,000+ hours
- Mounting: 3M VHB foam adhesive backing
- Wire Color Code: Red = 12V+, White = Ground / GND, Green = Data

Compatibility

Compatible Controllers: WS2811, WS2812B, and WS2812B-style LED controllers
Power Supply Required: 12V DC power supply
Controller Required: Yes

What’s Included

1 x 20-piece WS2811 3-LED RGB pixel module string

Please Note

Controller and power supply are sold separately.

Frequently Asked Questions

  • Yes. These modules require a compatible WS2811 or WS2812B-style RGB LED controller and a 12V DC power supply.

  • Yes. The modules are rated IP67, making them suitable for many indoor and outdoor lighting applications.

  • Each 20-module string uses approximately 14.4 watts at 12V DC.

  • Yes. These modules are commonly used for signs, cabinets, bars, patios, decks, automotive accent lighting, and decorative RGB projects.
