Description

These 12V WS2811 3-LED RGB pixel modules are designed for custom addressable lighting projects that need bright color, flexible installation, and weather-resistant performance. Each 20-pack string includes waterproof IP67 RGB LED modules with 5050 SMD LEDs, 3M adhesive backing, and red/white/green wiring for 12V power, ground, and data.

Ideal for signs, cabinet lighting, bar lighting, deck lighting, patio lighting, automotive accent lighting, holiday displays, and custom DIY RGB lighting projects. Compatible with common WS2811 and WS2812B-style LED controllers.

Technical Specifications

- LED Type: 5050 SMD RGB LEDs
- IC Type: WS2811
- Operating Voltage: 12V DC
- Power Consumption: 14.4W per 20-module string / 0.72W per module
- Color Output: RGB full color, up to 16 million color combinations
- Beam Angle: 120°
- Waterproof Rating: IP67
- Module Dimensions: 75mm x 15mm x 5mm per module
- Total String Length: Approximately 10.5 ft
- Working Temperature: -20°C to +45°C
- Lifespan: 50,000+ hours
- Mounting: 3M VHB foam adhesive backing
- Wire Color Code: Red = 12V+, White = Ground / GND, Green = Data

Compatibility

Compatible Controllers: WS2811, WS2812B, and WS2812B-style LED controllers
Power Supply Required: 12V DC power supply
Controller Required: Yes

What’s Included

1 x 20-piece WS2811 3-LED RGB pixel module string

Please Note

Controller and power supply are sold separately.

IP68 waterproof 12V WS2811 addressable RGB LED strip with 300 high-brightness 5050 SMD LEDs, 3M VHB adhesive backing, waterproof 3-pin connectors, and black FPCB. Great for indoor and outdoor accent lighting, signs, bars, decks, patios, displays, and custom RGB LED projects.

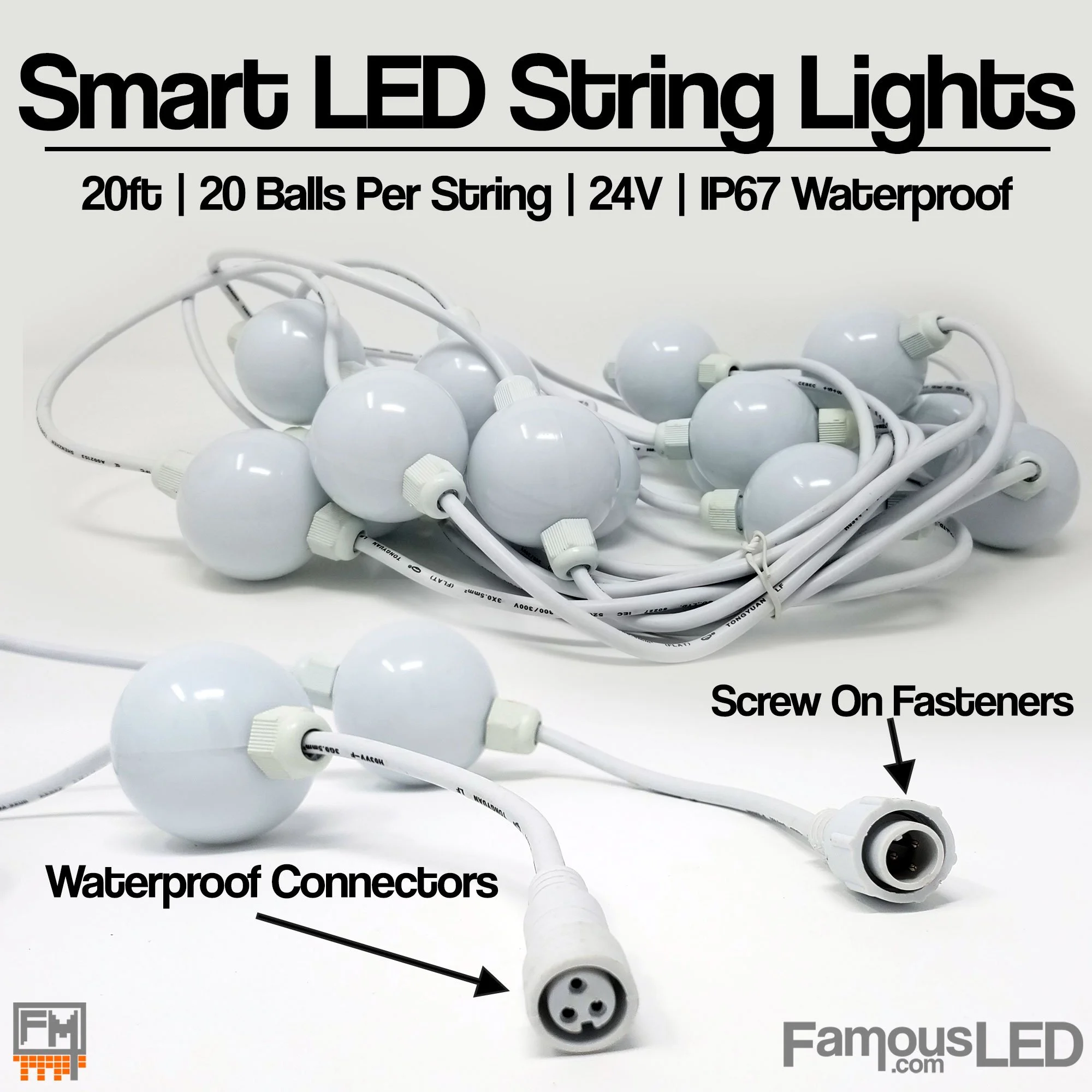

These 24V WS2811 Pixel LED Ball String Lights are designed for bright, decorative RGB lighting effects in indoor and outdoor installations. Each 50mm ball acts as an individually addressable pixel, making these lights a great option for patios, trees, events, holiday displays, stage lighting, architectural accents, and custom LED projects.

Each string includes 20 LED balls across a 20 ft length and uses 3-pin waterproof connectors for quick installation. Pair the string with a compatible WS2811 LED controller and a regulated 24V DC power supply to create chasing effects, fades, animations, and custom color patterns.

Control your digital addressable RGB LED strips from your phone with the SP108E WiFi LED Controller. This compact controller works with many popular smart LED IC types, including WS2811, WS2812B, WS2812, WS2801, SK6812, and other compatible addressable LED strips.

Use the iOS or Android app to adjust colors, brightness, animation modes, effect speed, and custom patterns. This controller is designed for addressable LED projects, accent lighting, underglow, display lighting, costume lighting, signs, and other custom RGB LED installations.

The FamousLED RF Remote LED Controller is designed for compatible 3-wire addressable LED lights using a 3-pin round/barrel-style LED connector. It provides wireless RF remote control for color modes, brightness, pattern speed, and automatic lighting effects.

This controller supports DC 5V–24V operation and includes 366 dynamic multi-color modes plus 12 single-color modes. It can also be used as a replacement controller for compatible FamousLED Snowboard LED Kits.

Power your 12V LED projects with this rechargeable 3000mAh lithium-ion battery pack. It is a direct replacement battery for FamousMods LED Snowboard Kits and can also be used with compatible 12V DC LED light bars, flexible LED strips, and other low-voltage electronics.

The pack includes an on/off switch, LED charge indicator, DC5521 power connection, wall charger, and a 1-to-2 splitter cable for powering two compatible 12V devices from one battery. Designed for portable LED applications, this battery is best suited for low-current 12V projects requiring up to 3A maximum output.
