24V WS2811 Pixel LED Ball String Lights
Create bright, colorful, animated lighting effects with these 24V WS2811 Pixel LED Ball String Lights. Each 50mm RGB ball functions as an individually addressable pixel, allowing you to create chasing effects, color fades, moving patterns, custom animations, and decorative lighting displays.

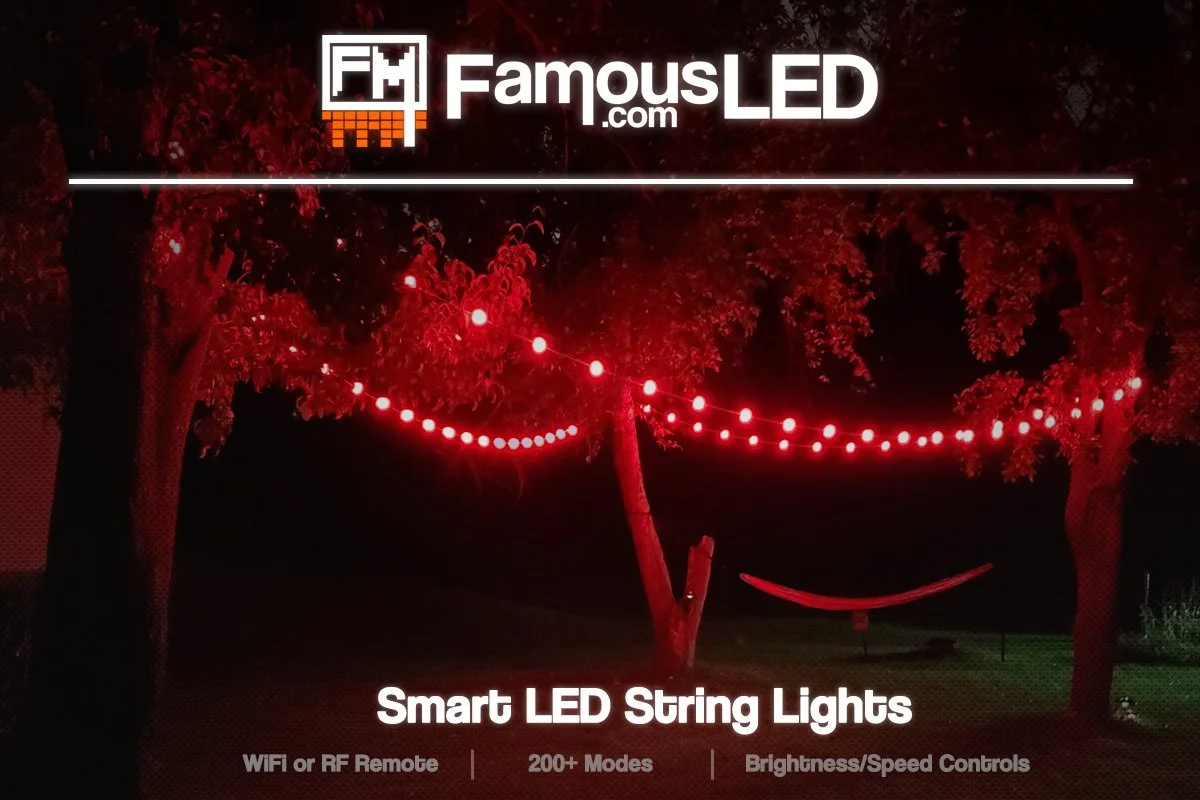

This string is ideal for patios, trees, pergolas, stages, event spaces, holiday displays, architectural accents, retail displays, and custom LED installations. The IP68 waterproof design and 3-pin waterproof connectors make it suitable for indoor and outdoor projects when installed correctly.
Each string includes 20 LED balls across a 20 ft length. The round 50mm diffuser gives the lights a soft, visible glow compared to exposed LED strip lights, making them a great choice for decorative installations where the light source is meant to be seen.
A compatible WS2811 addressable LED controller and a regulated 24V DC power supply are required. Make sure your controller, wiring, and power supply match the voltage, signal type, and total wattage of the lights before installation.
Important:
This is a 24V DC product. Use only a regulated 24V DC power supply. Using the wrong voltage can permanently damage the LEDs.
Features
- 24V WS2811 addressable RGB LED ball string lights
- Each 50mm ball functions as an individually addressable pixel
- 20 balls per string
- 20 ft total string length
- Soft round diffuser for a clean decorative glow
- IP68 waterproof design for outdoor and wet-location installations
- 3-pin waterproof connectors
- Great for patios, trees, events, displays, stages, holidays, and custom LED projects

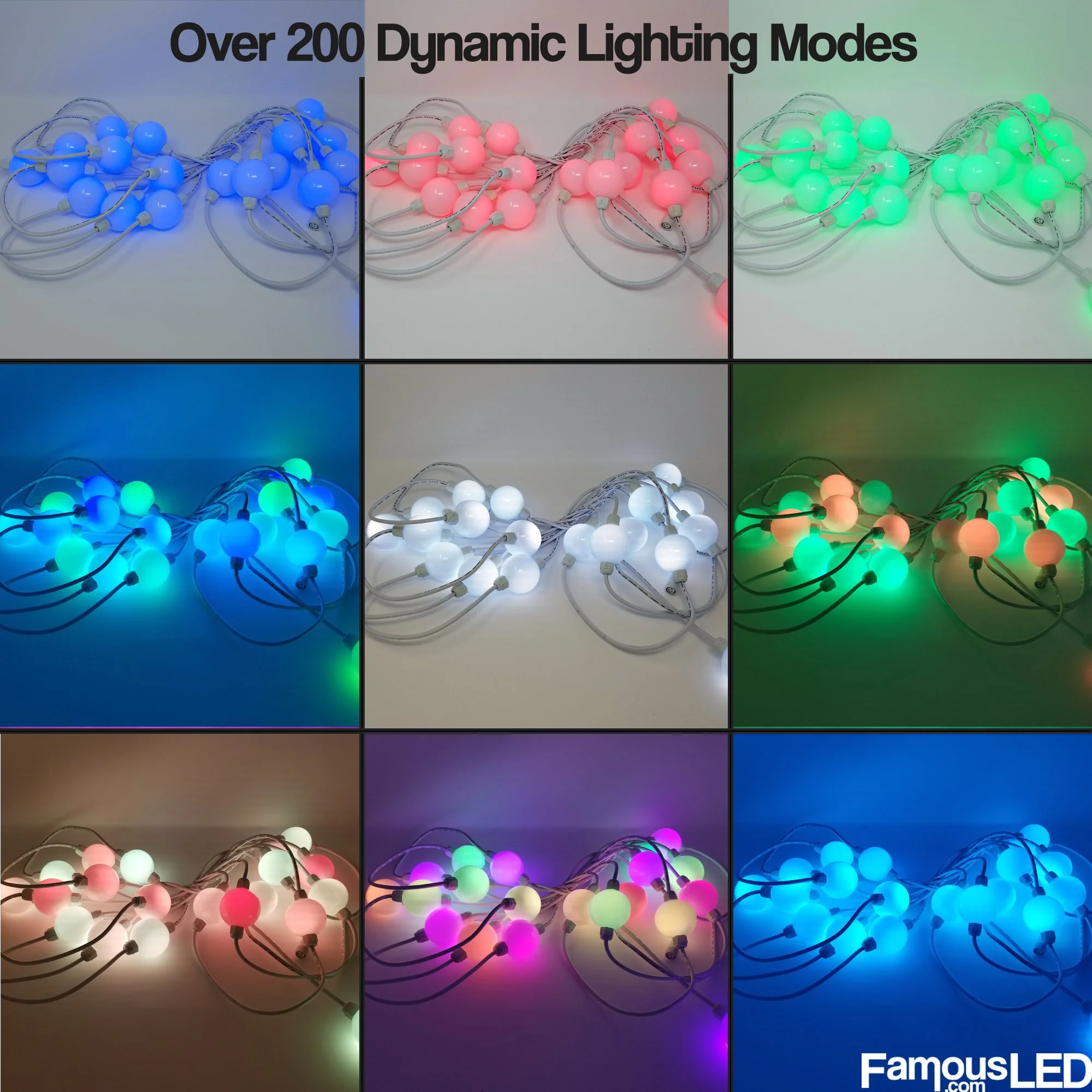

- Supports animated effects, chasing patterns, fades, and custom color sequences when used with a compatible controller
- Designed for use with a compatible WS2811 addressable LED controller
Technical Specifications
- Product Type: Addressable LED Ball String Lights
- Signal Type: WS2811
- Input Voltage: 24V DC
- Ball Quantity: 20 balls per string
- String Length: 20 ft
- Ball Diameter: 50mm
- Light Color: RGB
- Pixel Control: Individually addressable
- LEDs Per Ball: 6 LEDs
- Power Per Ball: 1.44W
- Estimated Total Power: 28.8W per string
- Waterproof Rating: IP68
- Connector Type: 3-pin waterproof connector
- Wiring Type: Data, Ground, V+
- Controller Requirement: Compatible WS2811 addressable LED controller required
- Power Supply Requirement: Regulated 24V DC power supply required
- Recommended Use: Indoor and outdoor decorative lighting
Frequently Asked Questions
-
Yes. These are WS2811 addressable LED lights, so they require a compatible WS2811 LED controller to create colors, animations, patterns, and effects.
-
Yes. These lights require a regulated 24V DC power supply. Make sure the power supply has enough wattage for the full string or for the total number of strings being connected.
-
Yes. Each 50mm ball is designed to act as an individually addressable pixel when connected to a compatible WS2811 controller.
-
Yes. These lights have an IP68 waterproof rating and use 3-pin waterproof connectors. For outdoor use, make sure all connectors are fully tightened and properly sealed.
-
Do not use these for submerged installations unless the manufacturer’s tested depth and time rating has been confirmed. IP68 means the product has a higher waterproof rating than IP67, but the exact submersion conditions depend on the manufacturer’s rating.
-
Only cut the string if you are comfortable wiring addressable LEDs and sealing the cut end properly. Cutting incorrectly can damage the string or prevent the remaining pixels from working.
-
Yes, multiple strings can be connected if your controller and power supply can handle the total pixel count and wattage. Longer runs may require power injection.
-
Power injection means adding power at additional points along the LED run to keep voltage stable. This can help prevent dimming, color shift, or signal issues on longer installations.
-
Use a controller that supports WS2811 addressable LEDs and 24V LED output wiring. The controller should match the pixel count and power requirements of your installation.
-
They are commonly used for patio lighting, tree lighting, holiday displays, event lighting, stage lighting, architectural accents, commercial displays, and custom RGB LED projects.
