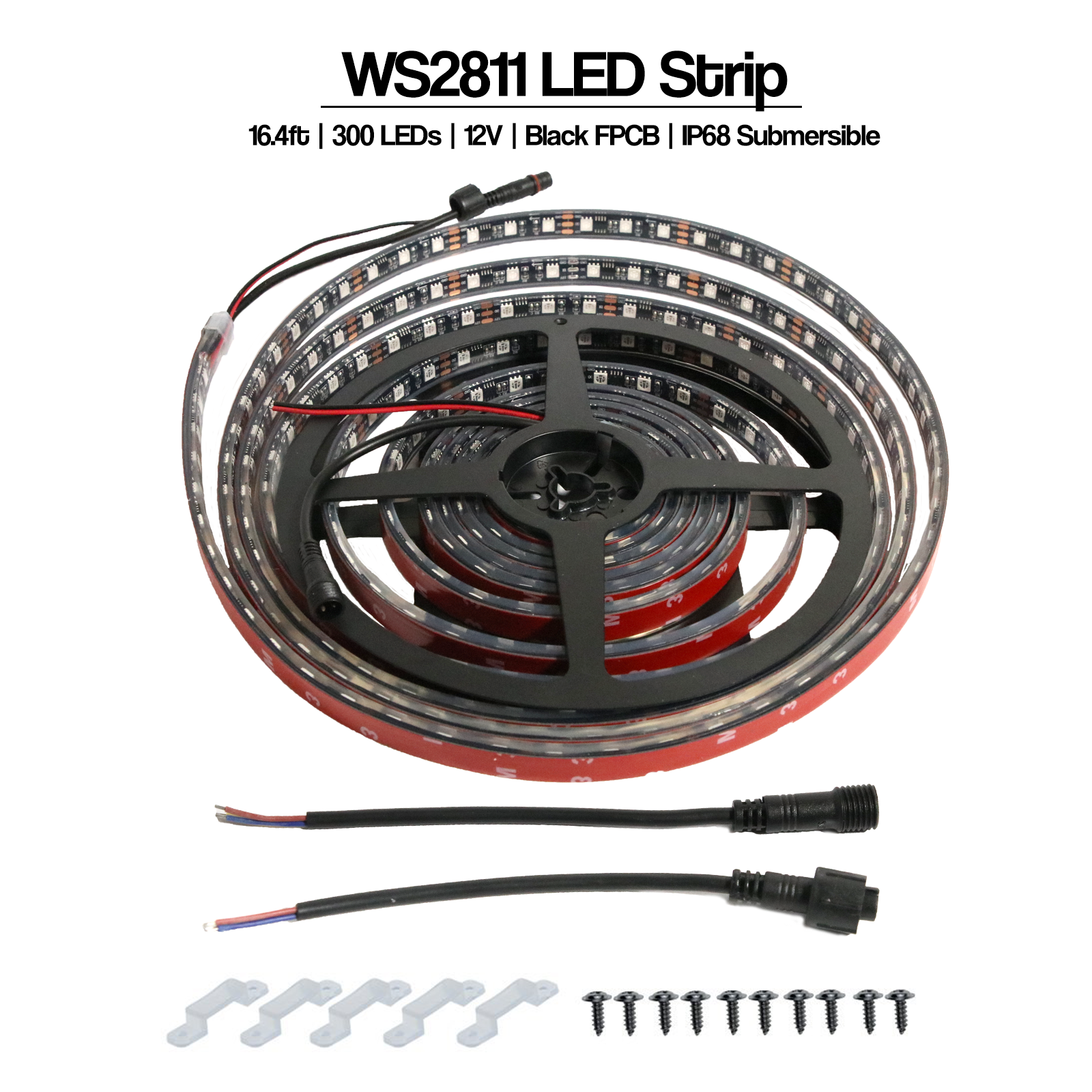

16.4 ft 12V WS2811 addressable RGB LED strip kit with waterproof connectors, clips, and screws

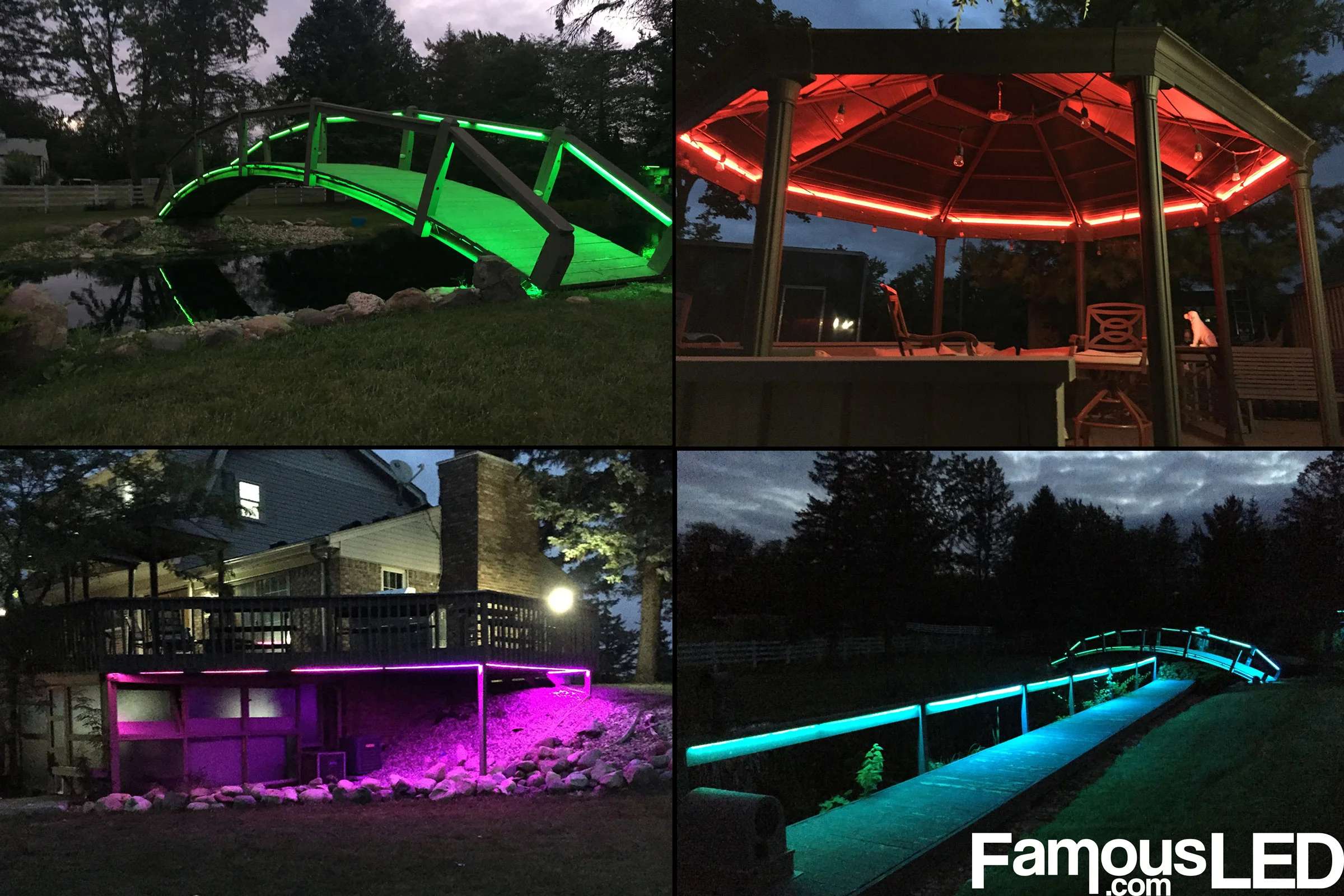

WS2811 waterproof RGB LED strip used for outdoor deck, patio, and landscape accent lighting

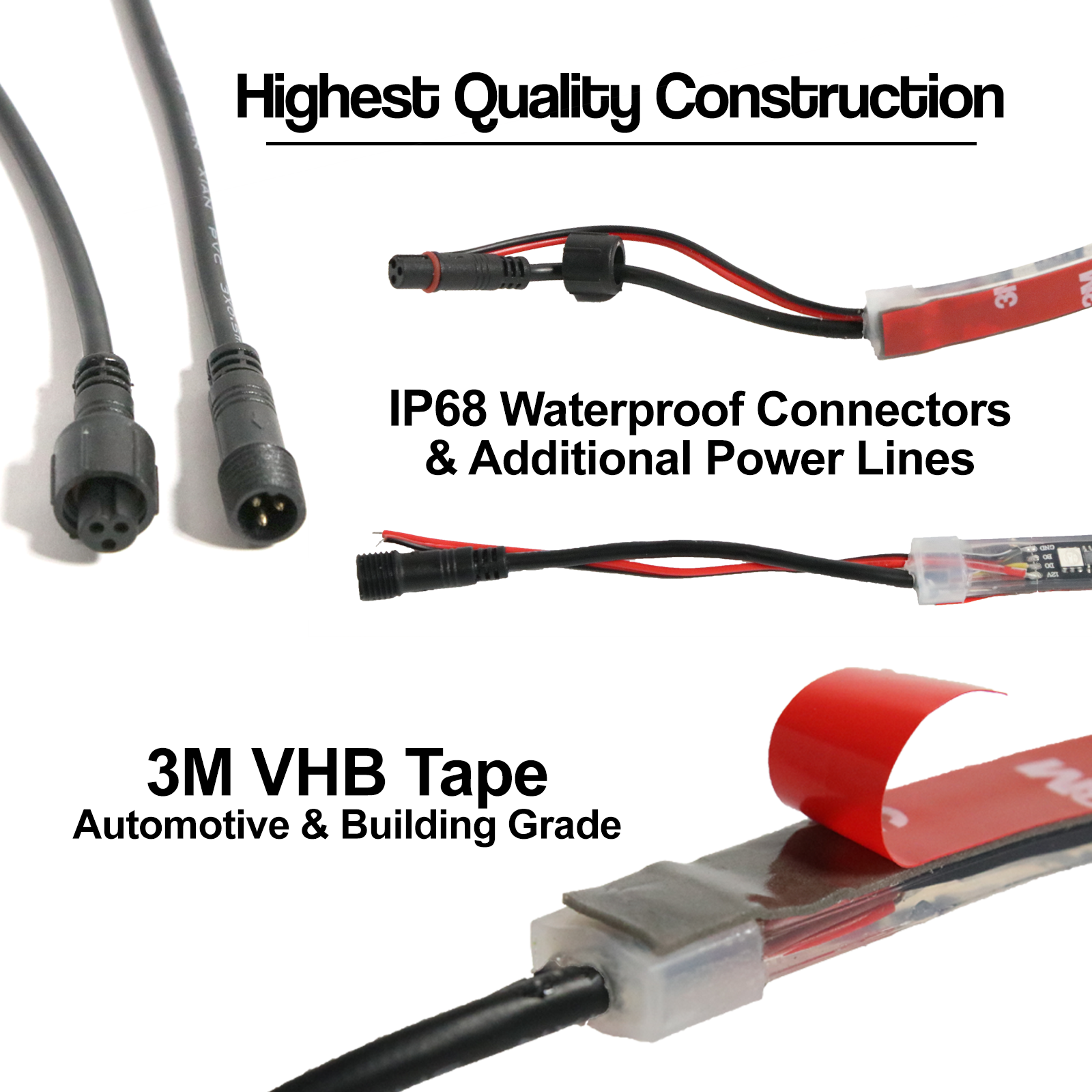

WS2811 LED strip showing IP68 waterproof connectors, extra power wires, and 3M VHB adhesive backing

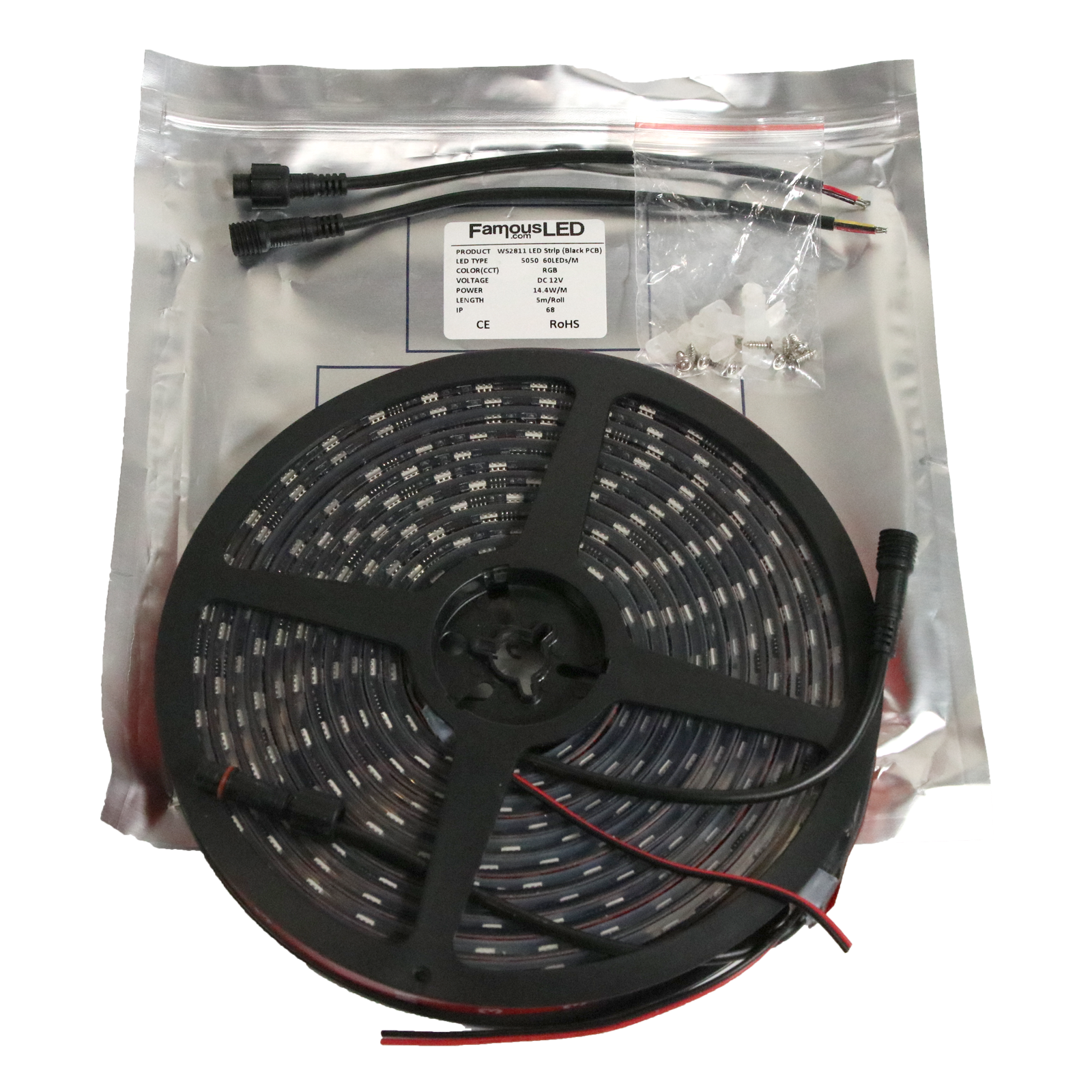

Packaged 12V WS2811 addressable RGB LED strip roll in sealed protective bag

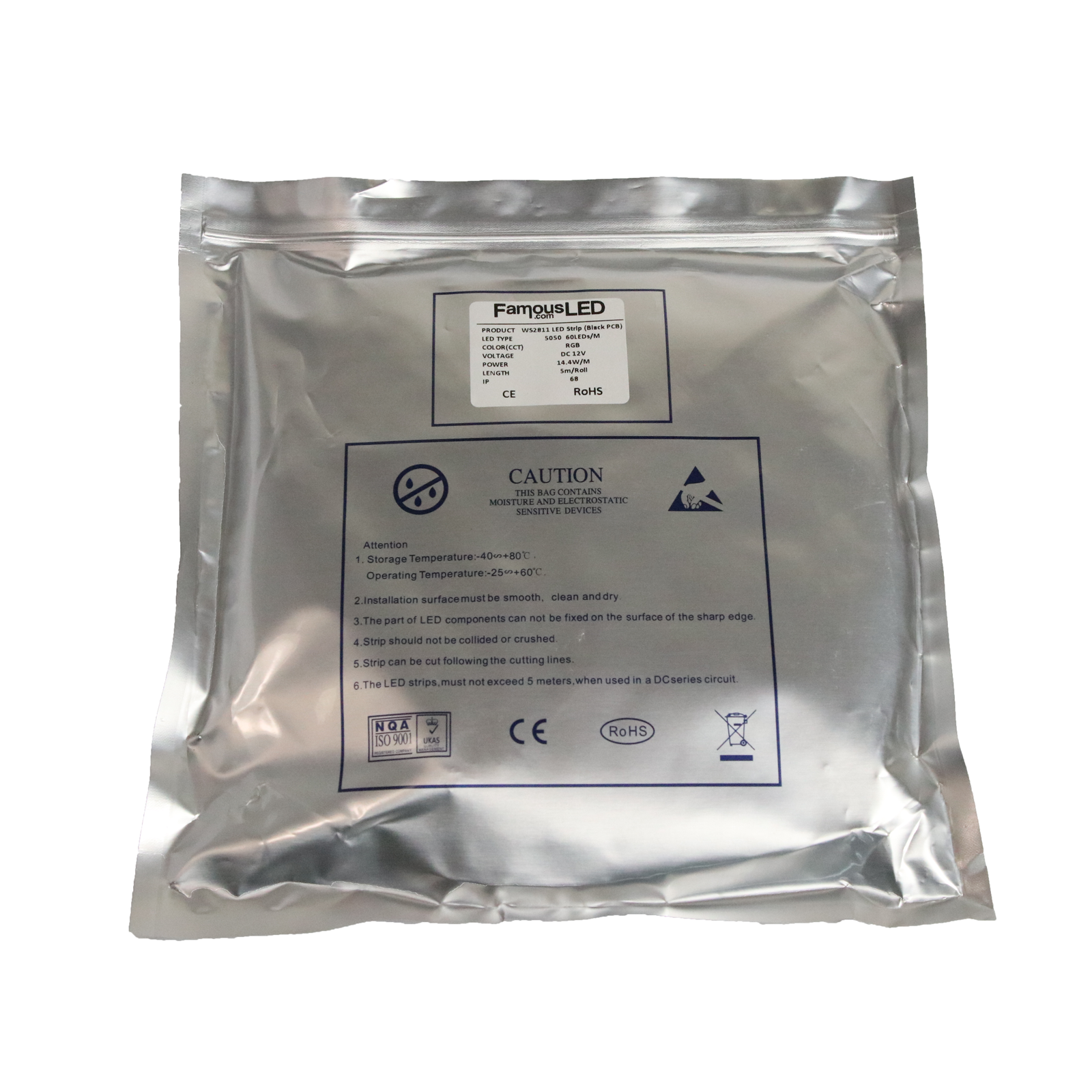

Back of packaged WS2811 addressable RGB LED strip showing product label and safety markings

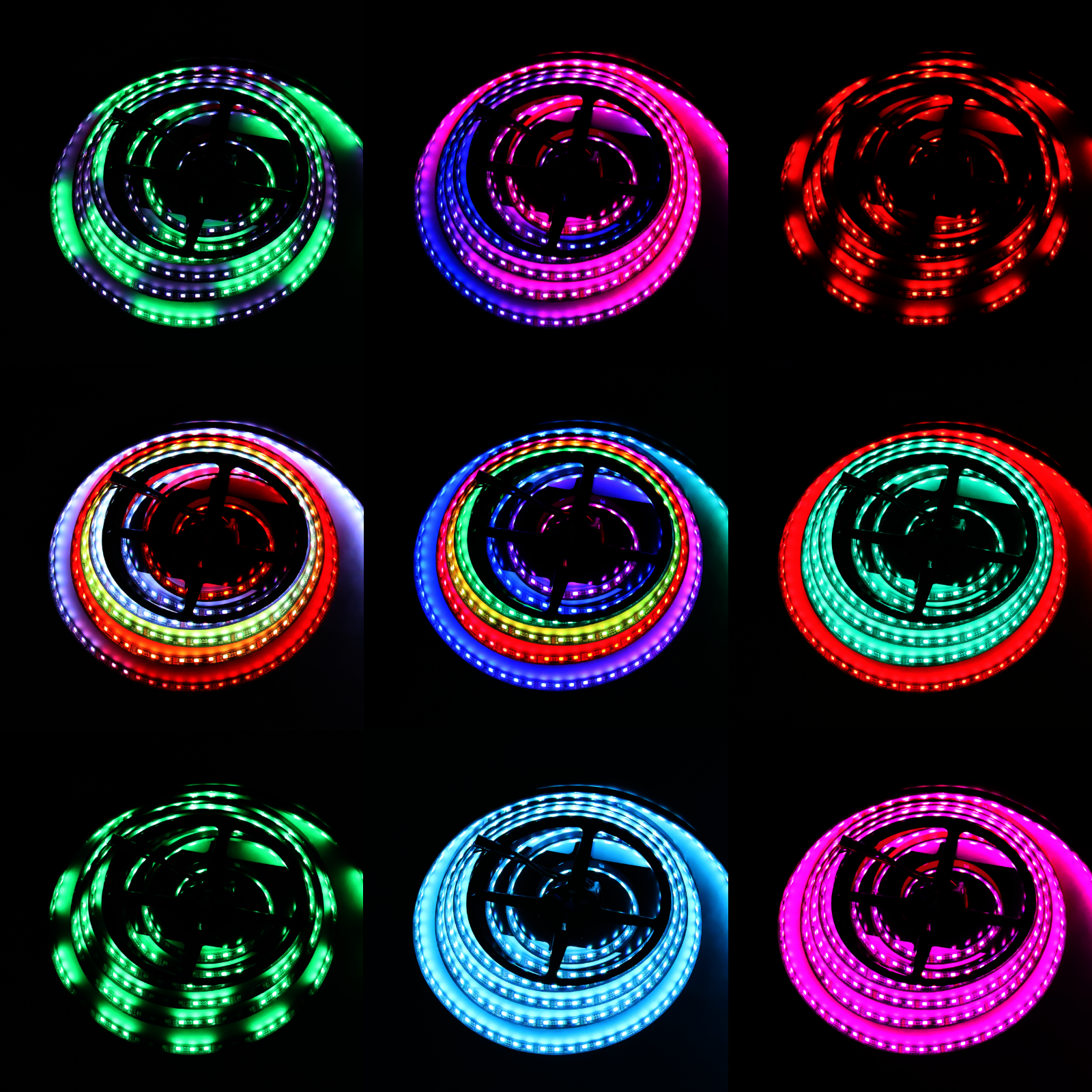

WS2811 RGB LED strip displaying multiple colors including red, green, blue, purple, white, and pink
Waterproof WS2811 RGB LED strip used outdoors in snow for colorful winter lighting effects

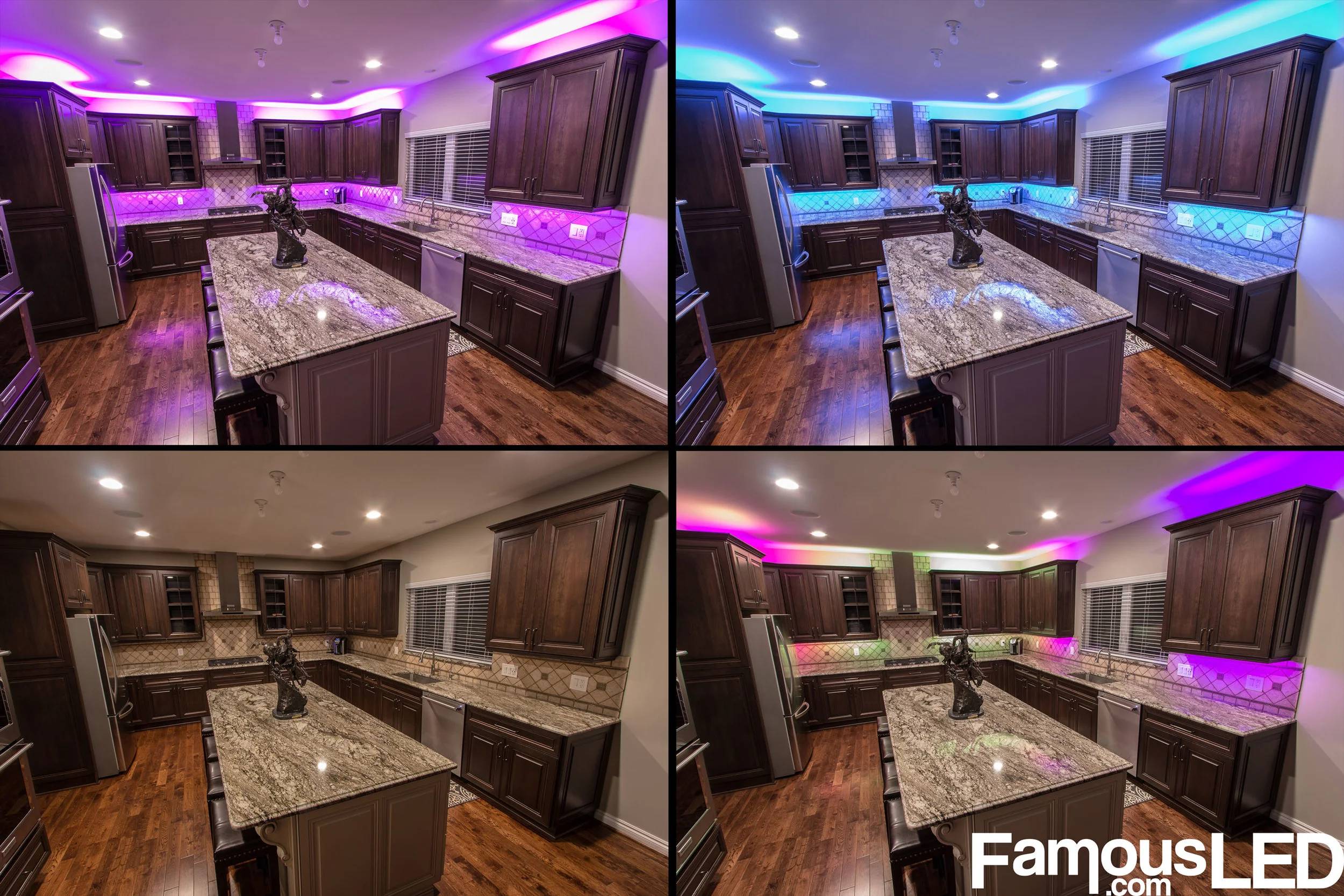

WS2811 RGB LED strip installed as colorful kitchen cabinet and countertop accent lighting

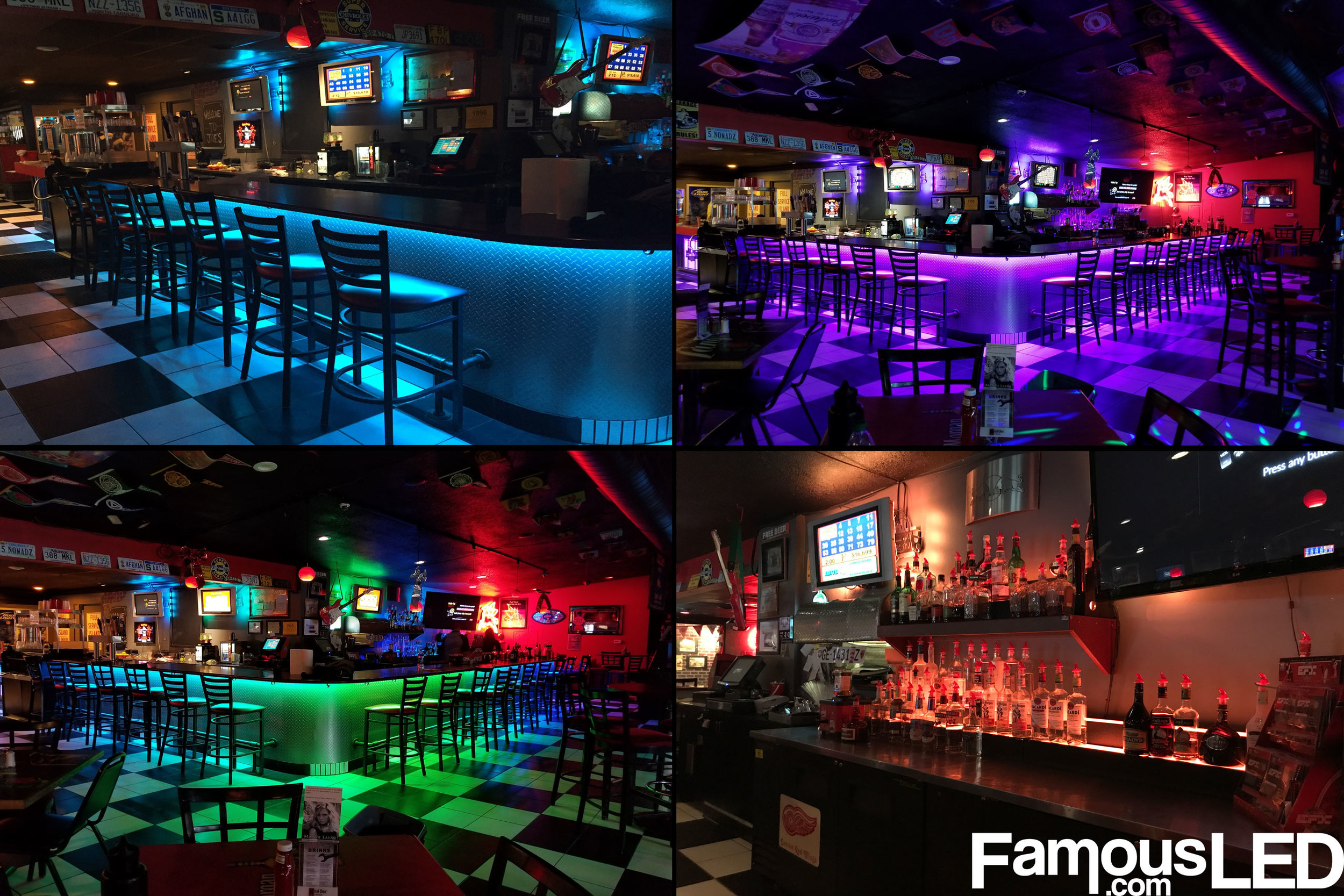

WS2811 RGB LED strip used for colorful bar, nightclub, and entertainment room accent lighting
16.4 ft 12V WS2811 addressable RGB LED strip kit with waterproof connectors, clips, and screws
WS2811 waterproof RGB LED strip used for outdoor deck, patio, and landscape accent lighting
WS2811 LED strip showing IP68 waterproof connectors, extra power wires, and 3M VHB adhesive backing
Packaged 12V WS2811 addressable RGB LED strip roll in sealed protective bag
Back of packaged WS2811 addressable RGB LED strip showing product label and safety markings
WS2811 RGB LED strip displaying multiple colors including red, green, blue, purple, white, and pink
Waterproof WS2811 RGB LED strip used outdoors in snow for colorful winter lighting effects
WS2811 RGB LED strip installed as colorful kitchen cabinet and countertop accent lighting
WS2811 RGB LED strip used for colorful bar, nightclub, and entertainment room accent lighting

16.4FT 12V WS2811 Addressable RGB LED Strip – 300 LEDs, IP68 Waterproof

from $94.95
Size:

IP68 waterproof 12V WS2811 addressable RGB LED strip with 300 high-brightness 5050 SMD LEDs, 3M VHB adhesive backing, waterproof 3-pin connectors, and black FPCB. Great for indoor and outdoor accent lighting, signs, bars, decks, patios, displays, and custom RGB LED projects.

IP68 waterproof 12V WS2811 addressable RGB LED strip with 300 high-brightness 5050 SMD LEDs, 3M VHB adhesive backing, waterproof 3-pin connectors, and black FPCB. Great for indoor and outdoor accent lighting, signs, bars, decks, patios, displays, and custom RGB LED projects.

FamousLED 12V WS2811 Addressable RGB LED Strip Light

This 12V WS2811 addressable RGB LED strip is built for custom lighting projects that need bright color, flexible control, and durable waterproof protection. The strip features high-quality 5050 SMD RGB LEDs on a black FPCB, IP68 waterproof protection, 3M VHB adhesive backing, and waterproof 3-pin connectors for cleaner installation.

Each controllable pixel can be programmed for custom colors, brightness levels, patterns, and animations when paired with a compatible LED controller. The strip works with popular programmable platforms including Arduino, Raspberry Pi, FastLED-compatible controllers, and many ready-to-use WS2811 / WS2812-style LED controllers.

The included waterproof 3-pin connectors make it easier to connect strips together without soldering. Additional power and ground wires are included for easier power distribution on longer LED runs.

Great for indoor and outdoor accent lighting, party lighting, holiday displays, signs, storefronts, bars, nightclubs, patios, decks, railings, stairs, ceilings, driveways, custom displays, and DIY RGB lighting projects.

Controller and power supply sold separately.

Features

  • Individually addressable WS2811 RGB control

  • High-brightness 5050 SMD RGB LEDs

  • 12V DC operation for better performance on longer LED runs compared to 5V strips

  • IP68 waterproof protection for indoor and outdoor applications

  • 3M VHB adhesive backing for secure mounting

  • Waterproof 3-pin connectors on both ends

  • Extra power and ground wires for easier power injection

  • Supports custom colors, brightness levels, patterns, and animations

  • Compatible with WS2811, WS2812, and WS2812B-style controllers

  • Works with Arduino, Raspberry Pi, FastLED, and compatible LED control platforms

  • Quick and easy installation

  • Long lifespan of 50,000+ hours

Technical Specifications

  • LED Type: 5050 SMD RGB LEDs

  • IC Type: WS2811

  • Operating Voltage: 12V DC

  • LED Quantity: 60 LEDs per meter / 300 LEDs total

  • Strip Length: 16.4 ft / 5 meters

  • FPCB Color: Black

  • Color Output: RGB full color, 24-bit color

  • Gray Scale: 256 brightness levels

  • Viewing Angle: 120°

  • Power Consumption: 14.4W per meter

  • Waterproof Rating: IP68

  • Dimensions: 5000mm x 12mm x 4mm

  • Adhesive Backing: 3M VHB indoor / outdoor tape

  • Lifespan: 50,000+ hours

  • Data Transmission Speed: Up to 800Kbps

  • Port Scanning Frequency: Up to 2KHz/s

  • Connector Type: Waterproof 3-pin connectors

  • Wire Color Code: Red = 12V+, Black = Ground / GND, Yellow = Data

  • LED Wavelengths

  • Red: 620–625nm

  • Green: 515–525nm

  • Blue: 465–475nm

Compatibility

Compatible Controllers: WS2811, WS2812, WS2812B, and WS2812-style LED controllers

Programmable Platforms: Arduino, Raspberry Pi, FastLED-compatible controllers, and similar LED control systems

Power Supply Required: 12V DC power supply

Controller Required: Yes

What’s Included

1 x 16.4 ft / 5 meter WS2811 addressable RGB LED strip

Waterproof 3-pin connectors

Mounting clips and screws

Please Note

Controller and power supply are sold separately.

Frequently Asked Questions

  • Yes. This LED strip requires a compatible WS2811, WS2812, or WS2812B-style LED controller. A controller is needed to change colors, patterns, brightness, and animations.

  • Yes. This strip requires a 12V DC power supply. The controller and power supply are sold separately.

  • Yes. This LED strip is rated IP68 waterproof and is designed for indoor and outdoor lighting projects. Always make sure the connectors, power supply, and controller are also protected from water if used outdoors.

  • The strip is IP68 waterproof, but the full installation must be properly sealed before any submersible use. The controller, power supply, wire connections, and connector points must be protected from water.

  • This strip has 300 total 5050 SMD RGB LEDs, with 60 LEDs per meter across a 5 meter / 16.4 ft roll.

  • This depends on the internal pixel grouping of the strip. Many 12V WS2811 LED strips control LEDs in groups rather than controlling every single LED separately. Each controllable pixel or section can be set to its own color and brightness when used with a compatible controller.

  • Yes, but only at the marked cut points on the strip. Cutting anywhere else may damage the strip or prevent sections from working correctly.

  • Yes. The waterproof 3-pin connectors make it easier to connect strips together. For longer runs, additional power injection may be needed to prevent voltage drop and color fading.

  • Power injection means adding 12V power and ground at additional points along the strip. This helps keep the LEDs bright and consistent, especially on longer runs or when multiple strips are connected.

  • Yes. This WS2811 LED strip can be used with Arduino, Raspberry Pi, FastLED-compatible controllers, and many other programmable LED control systems.
